H2.5 Hurricane Tie Framing Connectors - 316 Stainless Steel

316 Stainless Steel H2.5 Rafter & Hurricane Ties

316 Stainless Steel Framing Connectors for Rafters, Trusses, and Joists

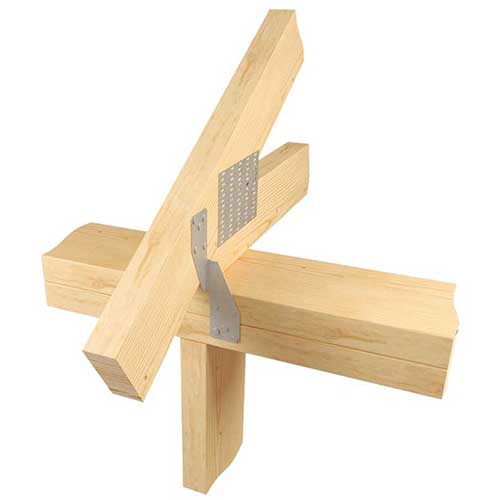

  • H2.5 Hurricane Ties are installed across two different pieces of wood: the top plate or wall plate and a rafter
  • This is done to resist uplift and lateral forces, such as those that come from a hurricane or severe storm
  • H2.5 ties are installed by connecting the two pieces of lumber, securing them together
  • 316 Stainless Steel: ideal for applications in severe, harsh, or marine/saltwater environments
  • Install 316 hurricane ties with only 316 stainless steel joist nails to maintain the manufacturer's warranty

An H2.5 Hurricane Tie, also known as a rafter or truss tie, is used for deck or roof framing to secure rafters, trusses, or joists to the wood framework. This is done to resist uplift and lateral forces, such as those that come from a hurricane or severe storm.

NOTE: Depending on pitch, birds-mouth notching may be required with some models to enable installers to fill all nail holes.

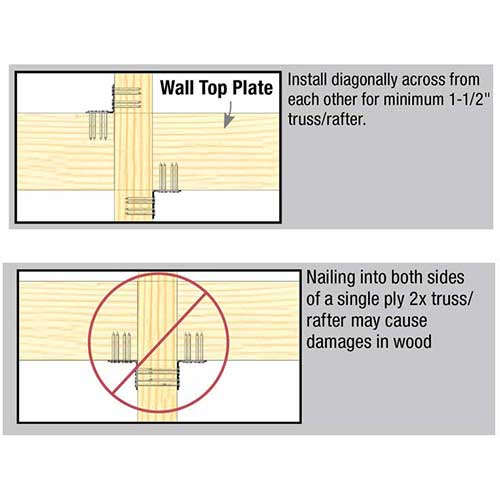

Caution: Do not install Hurricane ties into both sides of a given truss, rafter, or joist. Doing so may cause damages in the wood and risks collision of the nails. Instead, install them diagonally across from each other.

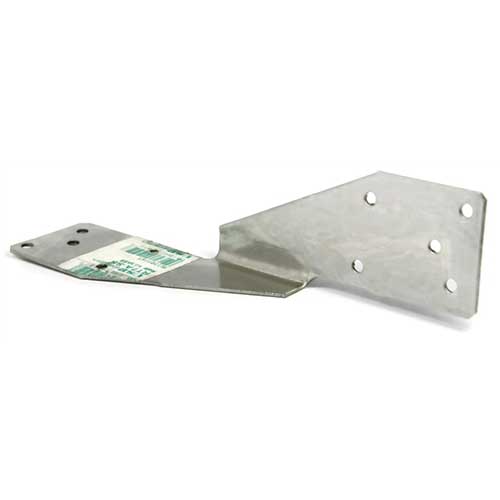

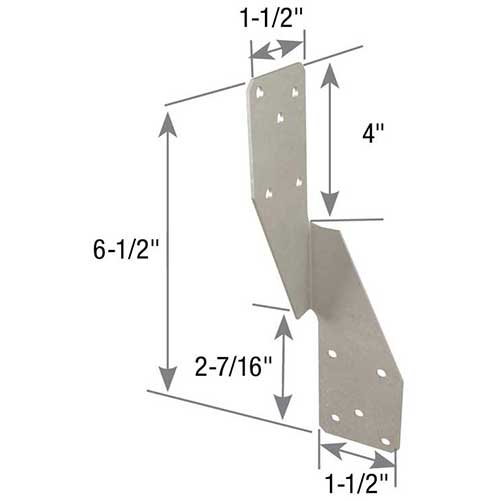

Hurricane Tie: H2.5
Manufacturer Part Number: RT7A-SS
Simpson Part Number: H2.5ASS
Uplift Load (Lbs.): 565
Lateral Load (Lbs.): 175
Steel Gauge: 18
Material: 316 Stainless Steel

Note: All allowable loads listed are for S-P-F (Spruce-Pine-Fir).

Made in the USA
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Hurricane Tie Framing Connectors 316 SS - H2.5A
SKU #6110-004-0001-02
Hurricane Tie Framing Connectors 316 SS - H2.5A
SKU #6110-004-0001-02
1
$9.98 (9.98/ea)
2
$19.78 (9.89/ea)
10
$95.30 (9.53/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
NA
25
$9.50 (0.38/ea)
100
$31.00 (0.31/ea)
1000
$250.00 (0.25/ea)
Subtotal: $0.00 /

Product Specifications
Corrosion Resistant
Yes
Grade
316
Marine Grade
Yes
Material
Stainless Steel
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
