Flange Nuts Serrated Zinc Plated Steel - Select Size
Flange Nuts Serrated Zinc Plated Steel



Alternative Views:


Hex Flange Nuts - Zinc Plated Steel

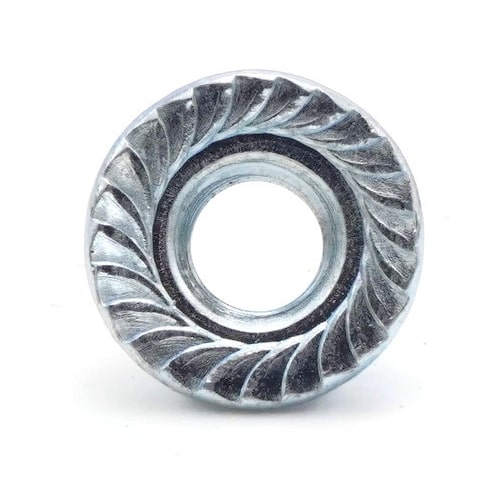

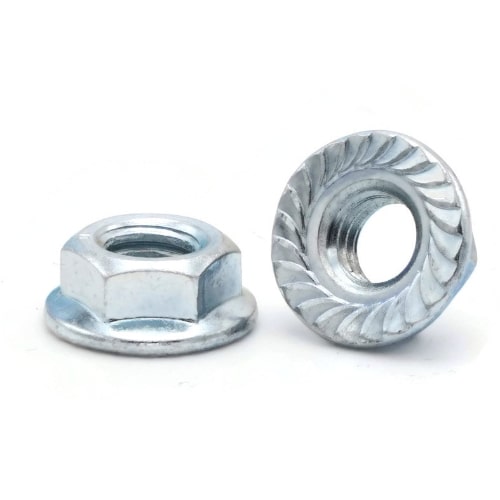

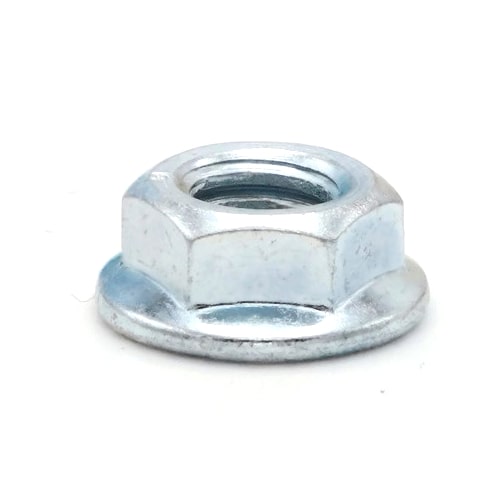

Serrated Flange Locking Nuts with a Protective Zinc Plating

A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface. The flange may be serrated to provide a locking action. The serrations are angled such that they keep the nut from rotating in the direction that would loosen the nut. Because of the serrations they cannot be used with a washer or on surfaces that cannot be scratched. The serrations help in avoiding vibration of nut and increase the holding power of nut.

Flange nuts in this finish are case hardened zinc plated steel. This finish hardens and adds a layer of protection to the flange nut.


REACH and RoHS Compliant

Nut Sizes Width Across Flats Thickness
#6-32 0.312" 0.171"
#8-32 0.344" 0.203"
#10-24 0.375" 0.219"
#10-32 0.375" 0.219"
1/4"-20 0.438" 0.236"
1/4"-28 0.438" 0.236"
5/16"-18 0.500" 0.283"
5/16"-24 0.500" 0.283"
3/8"-16 0.562" 0.347"
Nut Sizes Width Across Flats Thickness
3/8"-24 0.562" 0.347"
7/16"-14 0.678" REF 0.386" REF
7/16"-20 0.678" REF 0.386" REF
1/2"-13 0.750" 0.458"
1/2"-20 0.750" 0.458"
5/8"-11 0.931" REF 0.555" REF
5/8"-18 0.931" REF 0.555" REF
3/4"-10 1.091" REF 0.657" REF


Item# Item Name Our Price Qty Add
1102-118-0002 Flange Nuts Serrated Zinc Plated Steel - #6-32 UNC - Qty-1
$0.15
1102-118-0004 Flange Nuts Serrated Zinc Plated Steel - #6-32 UNC - Qty-25
$0.53
1102-118-0006 Flange Nuts Serrated Zinc Plated Steel - #6-32 UNC - Qty-100
$1.89
1102-118-0008 Flange Nuts Serrated Zinc Plated Steel - #6-32 UNC - Qty-250
$4.49
1102-118-0010 Flange Nuts Serrated Zinc Plated Steel - #6-32 UNC - Qty-1000
$17.02
1102-118-0012 Flange Nuts Serrated Zinc Plated Steel - #8-32 UNC - Qty-1
$0.15
1102-118-0014 Flange Nuts Serrated Zinc Plated Steel - #8-32 UNC - Qty-25
$0.57
1102-118-0016 Flange Nuts Serrated Zinc Plated Steel - #8-32 UNC - Qty-100
$2.07
1102-118-0018 Flange Nuts Serrated Zinc Plated Steel - #8-32 UNC - Qty-250
$4.91
1102-118-0020 Flange Nuts Serrated Zinc Plated Steel - #8-32 UNC - Qty-1000
$18.61
1102-118-0022 Flange Nuts Serrated Zinc Plated Steel - #10-24 UNC - Qty-1
$0.15
1102-118-0024 Flange Nuts Serrated Zinc Plated Steel - #10-24 UNC - Qty-25
$0.66
1102-118-0026 Flange Nuts Serrated Zinc Plated Steel - #10-24 UNC - Qty-100
$2.43
1102-118-0028 Flange Nuts Serrated Zinc Plated Steel - #10-24 UNC - Qty-250
$5.75
1102-118-0030 Flange Nuts Serrated Zinc Plated Steel - #10-24 UNC - Qty-1000
$21.81
1102-118-0032 Flange Nuts Serrated Zinc Plated Steel - #10-32 UNF - Qty-1
$0.15
1102-118-0034 Flange Nuts Serrated Zinc Plated Steel - #10-32 UNF - Qty-25
$0.66
1102-118-0036 Flange Nuts Serrated Zinc Plated Steel - #10-32 UNF - Qty-100
$2.42
1102-118-0038 Flange Nuts Serrated Zinc Plated Steel - #10-32 UNF - Qty-250
$5.73
1102-118-0040 Flange Nuts Serrated Zinc Plated Steel - #10-32 UNF - Qty-1000
$21.72
1102-118-0042 Flange Nuts Serrated Zinc Plated Steel - 1/4"-20 UNC - Qty-1
$0.15
1102-118-0044 Flange Nuts Serrated Zinc Plated Steel - 1/4"-20 UNC - Qty-25
$0.60
1102-118-0046 Flange Nuts Serrated Zinc Plated Steel - 1/4"-20 UNC - Qty-100
$2.19
1102-118-0048 Flange Nuts Serrated Zinc Plated Steel - 1/4"-20 UNC - Qty-250
$5.21
1102-118-0050 Flange Nuts Serrated Zinc Plated Steel - 1/4"-20 UNC - Qty-1000
$19.73
1102-118-0052 Flange Nuts Serrated Zinc Plated Steel - 1/4"-28 UNF - Qty-1
$0.15
1102-118-0054 Flange Nuts Serrated Zinc Plated Steel - 1/4"-28 UNF - Qty-25
$1.19
1102-118-0056 Flange Nuts Serrated Zinc Plated Steel - 1/4"-28 UNF - Qty-100
$4.33
1102-118-0058 Flange Nuts Serrated Zinc Plated Steel - 1/4"-28 UNF - Qty-250
$10.27
1102-118-0060 Flange Nuts Serrated Zinc Plated Steel - 1/4"-28 UNF - Qty-1000
$38.93
1102-118-0062 Flange Nuts Serrated Zinc Plated Steel - 5/16"-18 UNC - Qty-1
$0.15
1102-118-0064 Flange Nuts Serrated Zinc Plated Steel - 5/16"-18 UNC - Qty-25
$0.87
1102-118-0066 Flange Nuts Serrated Zinc Plated Steel - 5/16"-18 UNC - Qty-100
$3.19
1102-118-0068 Flange Nuts Serrated Zinc Plated Steel - 5/16"-18 UNC - Qty-250
$7.57
1102-118-0070 Flange Nuts Serrated Zinc Plated Steel - 5/16"-18 UNC - Qty-1000
$28.69
1102-118-0072 Flange Nuts Serrated Zinc Plated Steel - 5/16"-24 UNF - Qty-1
$0.15
1102-118-0074 Flange Nuts Serrated Zinc Plated Steel - 5/16"-24 UNF - Qty-25
$1.19
1102-118-0076 Flange Nuts Serrated Zinc Plated Steel - 5/16"-24 UNF - Qty-100
$4.33
1102-118-0078 Flange Nuts Serrated Zinc Plated Steel - 5/16"-24 UNF - Qty-250
$10.27
1102-118-0080 Flange Nuts Serrated Zinc Plated Steel - 5/16"-24 UNF - Qty-1000
$38.93
1102-118-0082 Flange Nuts Serrated Zinc Plated Steel - 3/8"-16 UNC - Qty-1
$0.15
1102-118-0084 Flange Nuts Serrated Zinc Plated Steel - 3/8"-16 UNC - Qty-25
$1.30
1102-118-0086 Flange Nuts Serrated Zinc Plated Steel - 3/8"-16 UNC - Qty-100
$4.74
1102-118-0088 Flange Nuts Serrated Zinc Plated Steel - 3/8"-16 UNC - Qty-250
$11.24
1102-118-0090 Flange Nuts Serrated Zinc Plated Steel - 3/8"-16 UNC - Qty-1000
$42.60
1102-118-0092 Flange Nuts Serrated Zinc Plated Steel - 3/8"-24 UNF - Qty-1
$0.15
1102-118-0094 Flange Nuts Serrated Zinc Plated Steel - 3/8"-24 UNF - Qty-25
$1.82
1102-118-0096 Flange Nuts Serrated Zinc Plated Steel - 3/8"-24 UNF - Qty-100
$6.59
1102-118-0098 Flange Nuts Serrated Zinc Plated Steel - 3/8"-24 UNF - Qty-250
$15.67
1102-118-0100 Flange Nuts Serrated Zinc Plated Steel - 3/8"-24 UNF - Qty-1000
$59.36
1102-118-0102 Flange Nuts Serrated Zinc Plated Steel - 7/16"-14 UNC - Qty-1
$0.15
1102-118-0104 Flange Nuts Serrated Zinc Plated Steel - 7/16"-14 UNC - Qty-25
$3.12
1102-118-0106 Flange Nuts Serrated Zinc Plated Steel - 7/16"-14 UNC - Qty-100
$11.35
1102-118-0108 Flange Nuts Serrated Zinc Plated Steel - 7/16"-14 UNC - Qty-250
$26.96
1102-118-0110 Flange Nuts Serrated Zinc Plated Steel - 7/16"-14 UNC - Qty-1000
$102.19
1102-118-0112 Flange Nuts Serrated Zinc Plated Steel - 7/16"-20 UNF - Qty-1
$0.15
1102-118-0114 Flange Nuts Serrated Zinc Plated Steel - 7/16"-20 UNF - Qty-25
$3.24
1102-118-0116 Flange Nuts Serrated Zinc Plated Steel - 7/16"-20 UNF - Qty-100
$11.79
1102-118-0118 Flange Nuts Serrated Zinc Plated Steel - 7/16"-20 UNF - Qty-250
$28.00
1102-118-0120 Flange Nuts Serrated Zinc Plated Steel - 7/16"-20 UNF - Qty-1000
$106.10
1102-118-0122 Flange Nuts Serrated Zinc Plated Steel - 1/2"-13 UNC - Qty-1
$0.15
1102-118-0124 Flange Nuts Serrated Zinc Plated Steel - 1/2"-13 UNC - Qty-25
$3.17
1102-118-0126 Flange Nuts Serrated Zinc Plated Steel - 1/2"-13 UNC - Qty-100
$11.55
1102-118-0128 Flange Nuts Serrated Zinc Plated Steel - 1/2"-13 UNC - Qty-250
$27.43
1102-118-0130 Flange Nuts Serrated Zinc Plated Steel - 1/2"-13 UNC - Qty-1000
$103.93
1102-118-0132 Flange Nuts Serrated Zinc Plated Steel - 1/2"-20 UNF - Qty-1
$0.19
1102-118-0134 Flange Nuts Serrated Zinc Plated Steel - 1/2"-20 UNF - Qty-25
$4.33
1102-118-0136 Flange Nuts Serrated Zinc Plated Steel - 1/2"-20 UNF - Qty-100
$15.72
1102-118-0138 Flange Nuts Serrated Zinc Plated Steel - 1/2"-20 UNF - Qty-250
$37.32
1102-118-0140 Flange Nuts Serrated Zinc Plated Steel - 1/2"-20 UNF - Qty-1000
$141.42
1102-118-0162 Flange Nuts Serrated Zinc Plated Steel - 5/8"-11 UNC - Qty-1
$0.35
1102-118-0164 Flange Nuts Serrated Zinc Plated Steel - 5/8"-11 UNC - Qty-25
$8.01
1102-118-0166 Flange Nuts Serrated Zinc Plated Steel - 5/8"-11 UNC - Qty-100
$29.13
1102-118-0168 Flange Nuts Serrated Zinc Plated Steel - 5/8"-11 UNC - Qty-250
$69.18
1102-118-0170 Flange Nuts Serrated Zinc Plated Steel - 5/8"-11 UNC - Qty-1000
$262.19
1102-118-0172 Flange Nuts Serrated Zinc Plated Steel - 5/8"-18 UNF - Qty-1
$0.44
1102-118-0174 Flange Nuts Serrated Zinc Plated Steel - 5/8"-18 UNF - Qty-25
$10.03
1102-118-0176 Flange Nuts Serrated Zinc Plated Steel - 5/8"-18 UNF - Qty-100
$36.47
1102-118-0178 Flange Nuts Serrated Zinc Plated Steel - 5/8"-18 UNF - Qty-250
$86.60
1102-118-0180 Flange Nuts Serrated Zinc Plated Steel - 5/8"-18 UNF - Qty-1000
$328.20
1102-118-0182 Flange Nuts Serrated Zinc Plated Steel - 3/4"-10 UNC - Qty-1
$0.63
1102-118-0184 Flange Nuts Serrated Zinc Plated Steel - 3/4"-10 UNC - Qty-25
$14.33
1102-118-0186 Flange Nuts Serrated Zinc Plated Steel - 3/4"-10 UNC - Qty-100
$52.11
1102-118-0188 Flange Nuts Serrated Zinc Plated Steel - 3/4"-10 UNC - Qty-250
$123.77
1102-118-0190 Flange Nuts Serrated Zinc Plated Steel - 3/4"-10 UNC - Qty-1000
$469.02
